Inline magnetic filtration for cleaner fluid. Smarter wells.
Over 5x more effective than traditional systems at removing ferrous debris from drilling fluids.
Inline design fits seamlessly into the flow line and maximizes magnetic field exposure – easy to install, easy to operate.
Prevents magnetic debris from reaching sensitive downhole tools, improving downhole tool performance and reducing costly failures.

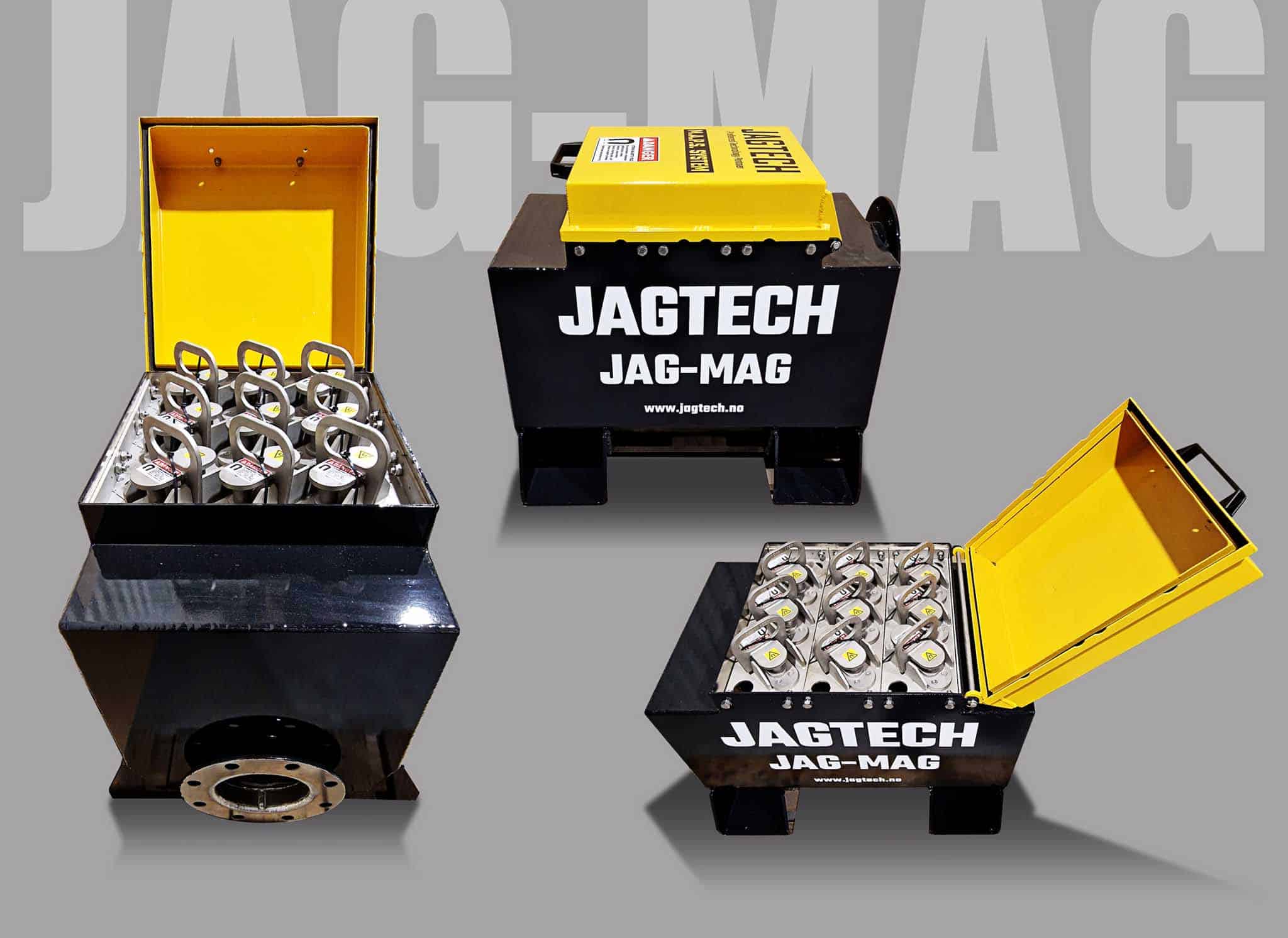

The JAG-MAG is Jagtech’s compact, inline magnetic filtration unit – built to deliver similar advanced magnetic separation power found in the Dual MAPS system, in a smaller, modular In-line package.
At the core of JAG-MAG is a specially engineered stack of neodymium magnets, strategically positioned to capture metal shavings and ferritic material before they can damage your tools or interfere with downhole sensors.
Integrated spoilers increase efficiency by disrupting the fluid flow around the magnets, moving even the smallest metal fines into positions with the strongest magnetic field.
“With JAG-MAG, cleaner fluid means longer tool life, fewer trips, and improved drilling performance.”
Even a small amount of metal debris in your drilling fluid can lead to tool failures, magnetic interference, and unplanned downtime – especially in high-spec wells with complex BHAs.
JAG-MAG stops these problems before they start by filtering out ferrous particles of the mud before they reach your downhole tools.
The JAG-MAG is an inline magnetic particle separation unit that enhances drilling fluid cleanliness in real time. Built on the same principles as Jagtech’s Dual MAPS platform, it uses powerful neodymium magnets arranged in a high-efficiency stack to remove metal particles from active mud systems.
Its compact, plug-and-play design makes it ideal for operations where space and time are limited. Spoiler elements within the unit disrupt laminar flow, guiding metal fines into high-density magnetic zones for effective capture.
The JAG-MAG helps operators maintain tool integrity, cut costs, and improve drilling performance. All from a system that installs in minutes and works continuously throughout the run.
